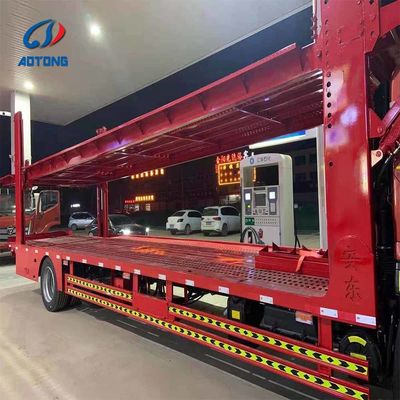

Trailer Model
|
car carry trailer
|
|
Overall Dimension(L x W x H)(mm)
|
20000×2600×4200mm
|
|
capacity
|
10 - 12 units vehicles
|
|
Axle Brand
|
13T×3pcs
|
|
Axle Number
|
Three
|
|
Axle load
|
13000kg X 3
|
|
Suspension system
|
Standard Mechanical suspension
|
|
The material of Main beam
|
The height of the beam is 500 mm, top 10mm,middle 6mm,bottom 12mm;T700 high strength steel
|
|
Tire Type and quantity
|
Chinese brand Tire 12R22.5
|
|
6 pcs.
|
|
|
rim
|
9.0×22.5
|
|
Traction Pin
|
2",diameter 50.8 mm ,loading 16 ton
|
|
Tool Box
|
1 Standard
|
|
Landing Gear
|
standard 28 ton
|
|
Electrical system
|
1. Voltage: 24v
|
|
2. Receptacle: 7 ways (7 wire harness)
|
|
|
Tail lamp with turn signal, brake light & reflector, side lamp etc.
|
|
|
One set 6-core standard Cable.
|
|
|
Color
|
According to customer's requirement
|
|
Packing
|
Polish with wax before shipping
|
|
Noted
|
1.Top platform can be adjusted up and down by hydro-cylinder and chain block, totally 4 pcs of cylinder in each trailer
|
|
2. The roof of trailer can be down about 20cm.We can control by hand when go through limited high place as bridge or some thing.
|
Yes, we have our own factory in Shandong, China, specializing in trailer manufacturing for several years. Our facility is well-known for producing various types of trailers.
One unit.
Absolutely! We can customize trailers according to your specific requirements.
We provide multiple transportation options:
Our comprehensive services include competitive pricing, shipping and packaging solutions, cargo hold booking assistance, and parts procurement support.
Send your inquiry to begin our partnership. Our expert team is ready to assist you throughout the process.
With over 30 years of trailer manufacturing experience, we've earned your trust through quality and reliability.
