| MOQ: | 1台 |
| 標準パッケージ: | エクスポート標準 |
| 配達期間: | 25日 |
| 決済方法: | T/T |
20ft 2Axle Container Semi Trailer, offer the container trailers to maximize the payload.Flatbed container trailer adopt advanced design concept. After fully understanding and analysing the transportation environment in different countries. Also the length of the trailers can be customized, like 45ft, 48ft, or 53ft container transportation trailers.

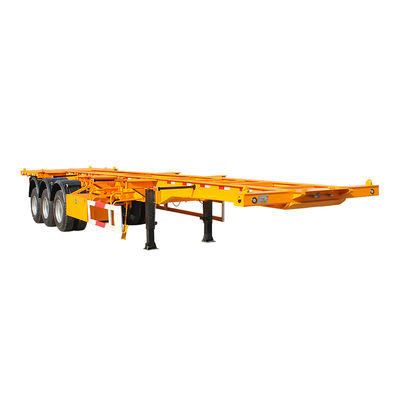

Skeleton Container semi trailer is designed for stevedoring and transporting 1x40', 1x 20'or 2x20'ISO Cargo Containers and loose cargos. To make sure the servise life of the semi trailers, all the apare parts we adopt are World Famous brand. We use famous German WABCO braking valve will definitely shorten the Braking Distance, to make the safety of the trailers and the drivers. Also the trailers floor is checker plate, this will keep the other bulk cargo more stable, like the bags, or long stuff.
|
Loading Capacity |
25-35tons | |
|
Axle |
2 axles ,BPW/FUWA axle4 |
|
|
Tyre |
8 pieces, 10.00R20,12R22.5 |
|
|
Dimensions(LxWxH) |
7000mm x 2500 x 1550mm |
|
|
Tare weight |
5tons |
|
|
Axle spacing |
1310mm |
|
|
Rims |
8.5-20, 9.0-20 |
|
|
Suspension System |
Leaf spring Suspension/Air suspension |
|
|
Brake System |
Dual line pneumatic brake system with WABCO emergency relay valve |
|
|
Main Beam |
Height 480mm Q345 carbon steel |
|
|
Chassis |
upper 14mm, lower 16mm. Mid web 8mm |
|
|
Kingpin |
2' or 3.5' interchangeable,JOST brand |
|
| Twist locks | 12 units ISO THT brand | |
|
Landing Gear |
28 Tons , Two speed manual operation |
|
|
Electrical System |
1.Voltage: 24v 2. Receptacle: 7 ways (7 wire harness) German standard |
|
|
Lights and Reflectors |
Rear light, rear reflector, turn indicative light, side reflector, fog lamp, number plate light |
|
|
Painting |
Shot blast to SA 2.5 Standard prior to application of primer, polyurethane top coat. Total DFT not less than 100μm;Any color will be available |
|
|
Tool Box |
One tool box with a set of standard trailer tools |
|
|
Spare Tyre Carrier |
One piece or two pieces |
|
