| MOQ: | 1ユニット |
| 標準パッケージ: | 輸出基準 |
| 配達期間: | 25日 |
| 決済方法: | T/T |

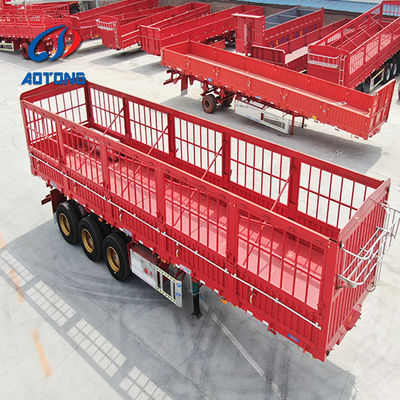

FENCE semi trailer is based on flatbed semi trailer design and built with side walls and container twistlocks, which can transport not only containers, but also bulk cargos.
1>High quality steel makes trailer itself lighter but strong enough for heavy cargos, so that transport company can load more tons.
2>The most skilled workers make welding of this flatbed trailer more frequent and strong.
3>Two pieces spare tire carriers, water tank, fuel tank etc, are optional accessories which build modern transportation.
4>We have standard side wall semi trailer which is with 3 axles and 50 tons loading capacity and 600mm height side wall. Meanwhile, we can have your trailer customised with options.
| Overall Dimension(L*W*H) | 7200 / 12400 / 13000*2500 *(fence height 1600 /1800) |
| Tare Weight | 7.5t |
| Axle | 13T/16P, 2 / 3 / 4 pcs: BPW or FUWA or Yonglitai or Huajin Brand |
| Leaf Spring | 90*13-10, 6/8 sets, FUWA alxe Funiu alxe Taiyue axle etc. |
| Suspension System | Mechanical Suspension / air suspension / single point suspension (Germany Type or America Type or Japan Type) |
| Main Beam | Material: Q 345 Carbon Steel |
| Beam height: 500 mm | |
| Upper plate: 14 mm | |
| Bottom Plate: 16 mm | |
| Middle: 6/8 mm | |
| Side Beam | 14# / 16# / 18# channel steel (Q235) |
| Cross Member | 8# / 10# / 12# channel steel (Q235) |
| Platform | 3mm checker plate or flatbed |
| Side Wall Height | 600mm/800mm/1000mm etc. |
| Tire | 12R22.5-18, 12units |
| Landing Gear | Standard 28Ton, JOST or FUWA etc. |
| Brake system | WABCO available. 4 sets T30/30+2 sets T30 chamber; Two 40L tanks, ABS Optional |
| Electrical System | Voltage:24V, LED lights |
| Tail light, brake light & reflector, side lamp etc. | |
| Receotacle:7 ways (7 wire harness) |
Yes, we have our own factory in Shandong, China, specializing in trailer manufacturing for several years. Our facility is well-known for producing various types of trailers.
One unit.
Absolutely! We can customize trailers according to your specific requirements.
We provide multiple transportation options:
Our comprehensive services include competitive pricing, shipping and packaging solutions, cargo hold booking assistance, and parts procurement support.
Send your inquiry to begin our partnership. Our expert team is ready to assist you throughout the process.
With over 30 years of trailer manufacturing experience, we've earned your trust through quality and reliability.
