| MOQ: | 1ユニット |
| 標準パッケージ: | 輸出基準 |
| 配達期間: | 25日 |
| 決済方法: | T/T |
| Trailer specification | |||

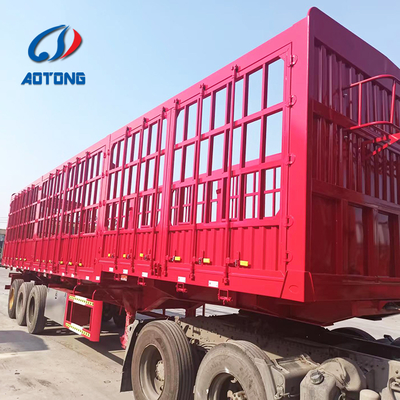

| 1 | Description | 40 Feet 3-axle heavy-duty sidewall type cargo transport semi-trailer | |
| 2 | Function | Transport loose cargo,bagged cement,bulk rice,etc. | |
| 3 | Overall dimension | 12800*2550*2150mm(approx) | |
| 4 | Curb weight | According to design,must be heavy-duty designed | |
| 5 | Material | Carbon steel,Q345B | |
| 6 | Sidewall board | 60cm height & detachable-type | |
| 7 | Payload | 50 Tons | |
| 8 | The height of the fifth wheel | Designed as client's truck head drawing | |
| 9 | Platform | Thickness 3mm & checkered steel plate | |
| 10 |
Chassis
|
Top flange | Thickness:14mm |
| Middle flange | Thickness:8mm | ||
| Bottom flange | Thickness:16mm | ||
| Boundary flange | Thickness:14mm(Channel steel) | ||
| Main parts specification | |||
| 11 | Suspension | Leaf spring,16mm*90mm*10pcs | |
| 12 | Axle | 13T HCSV Brand with ABS and automatic slack adjuster & 3 units | |
| 13 | Tire | 12R22.5 & 12 units,Brand Triangle | |
| 14 | Rim | 9.00 & 12 units,high strength iron | |
| 15 | King pin | 50#(2”) or 90#(3.5”),standard bolt type | |
| 16 | Landing gear | Capacity & 28T,Brand JOST | |
| 17 |
Spare wheel carrier |
1 unit | |
| 18 | Twist lock | 12 units (can deliver 40 or 20 feet container) | |
| 19 | Lash hook | Heavy-duty type,large quantities as possible as we can | |
| 20 | Loadlock winch | Large quantities as possible as we can | |
| 27 | Mud guard plate | Integrated design plate,heavy-duty design | |
| 28 | Reverse buzzer | 1 unit | |
| 29 | Electric system | 24V, 7-pin socket | |
| 30 | Lights | LED lights with protection | |
| 31 | Painting | Color as customer’s requirements | |
| 32 | Delivery | Spray wax before departure and tarpaulin for protection or shipping with container | |
| Other equipment | |||
|
1.Single tool box, largest as possible as we can. 5.Bring enough spare parts for client,like joints,hangers,lights,hooks,winches and so on. |
|||
Yes, we have our own factory in Shandong, China, specializing in trailer manufacturing for several years. Our facility is well-known for producing various types of trailers.
One unit.
Absolutely! We can customize trailers according to your specific requirements.
We provide multiple transportation options:
Our comprehensive services include competitive pricing, shipping and packaging solutions, cargo hold booking assistance, and parts procurement support.
Send your inquiry to begin our partnership. Our expert team is ready to assist you throughout the process.
With over 30 years of trailer manufacturing experience, we've earned your trust through quality and reliability.
